HamKing X-200N-2 Dual Band Antenna

Main Features

Electrical Data:

• Frequency band: VHF/UHF
• Frequency: 144/430 Mhz
• Gain:6.0 dBi (144 MHz), 8.0 dBi (430 MHz)
• VSWR: <1.5
• Power: 200 watts
• Impedance: 50 Ohms
• Type: 2x5/8 wave (144 MHz), 4x5/8 wave (430 MHz)
• Radiation: Omnidirectional

Mechanical Data:

• Weight: 1200 gram
• Lenght: 250 cm (two parts)

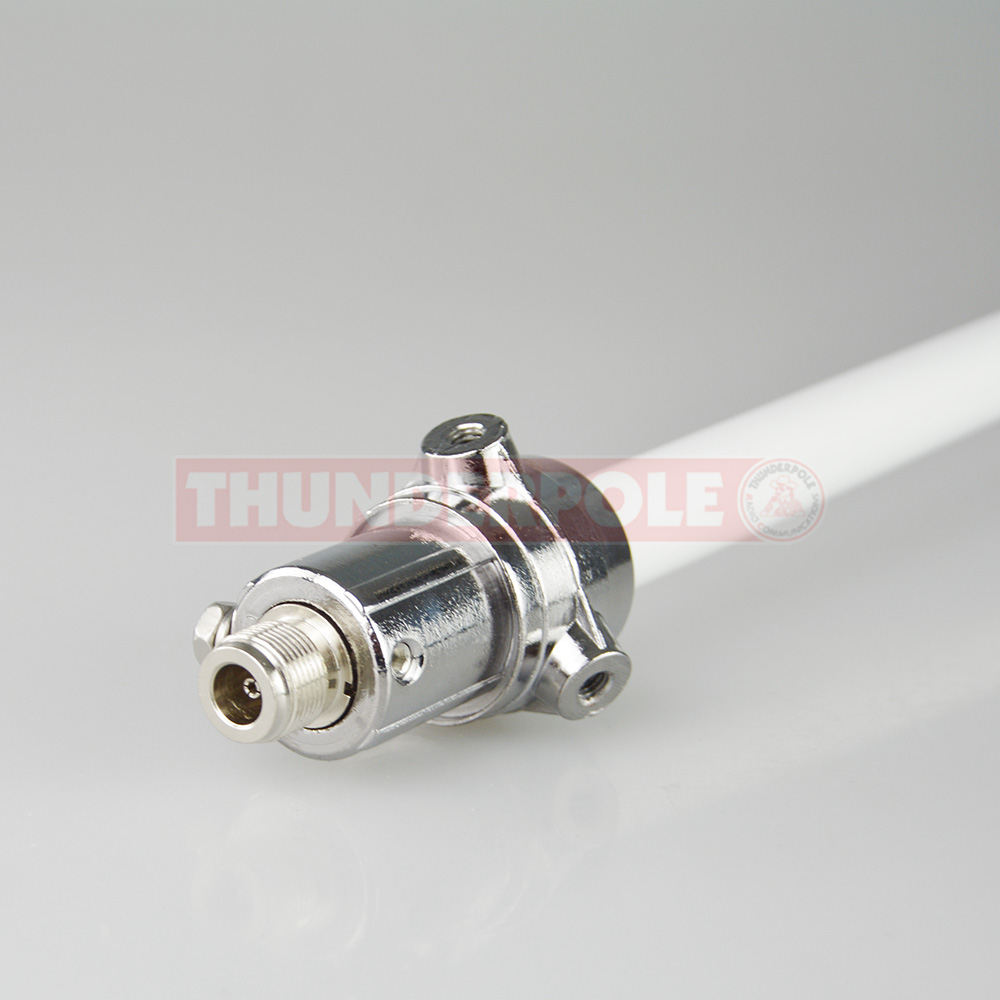

• Connector: N Type
• Mast Ø: 30 - 48 mm
• Max wind resistance: 50 m/sec (180 km/h)

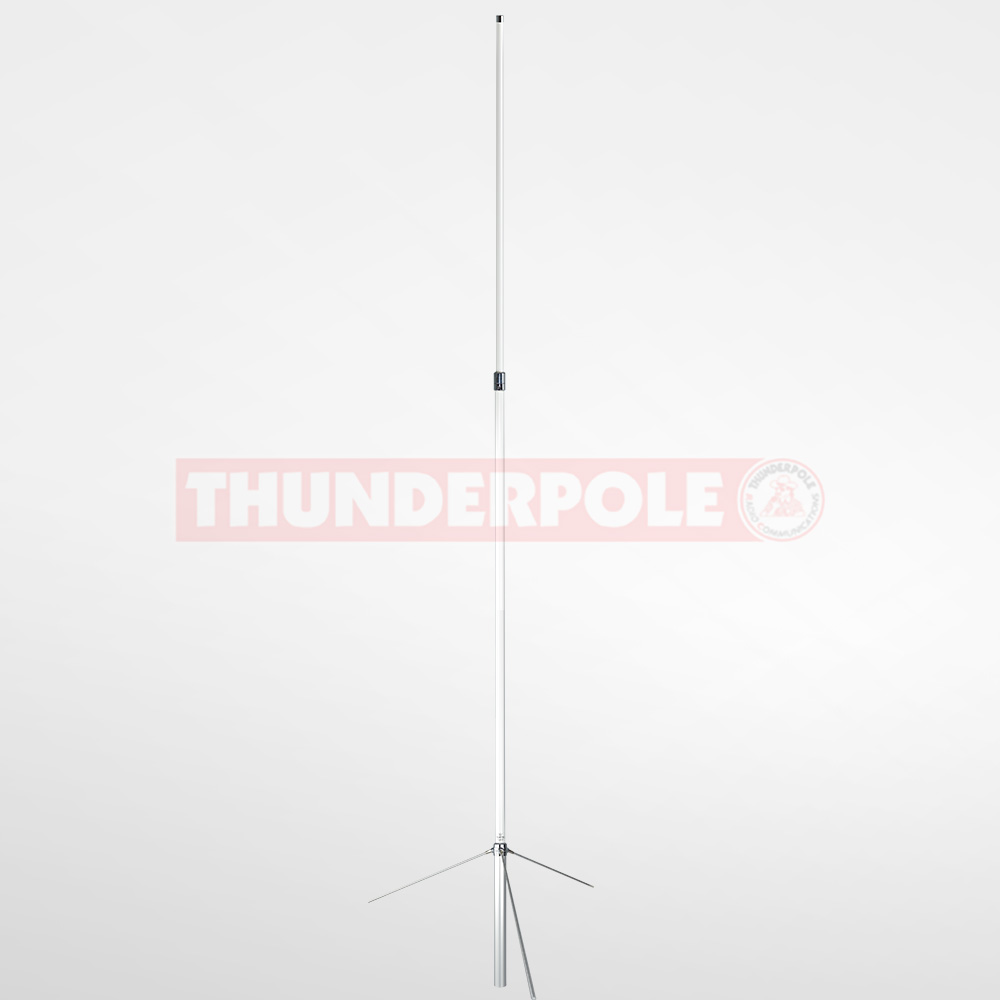

HamKing X-200N-2 | 144/430 MHz Dual Band Base Antenna

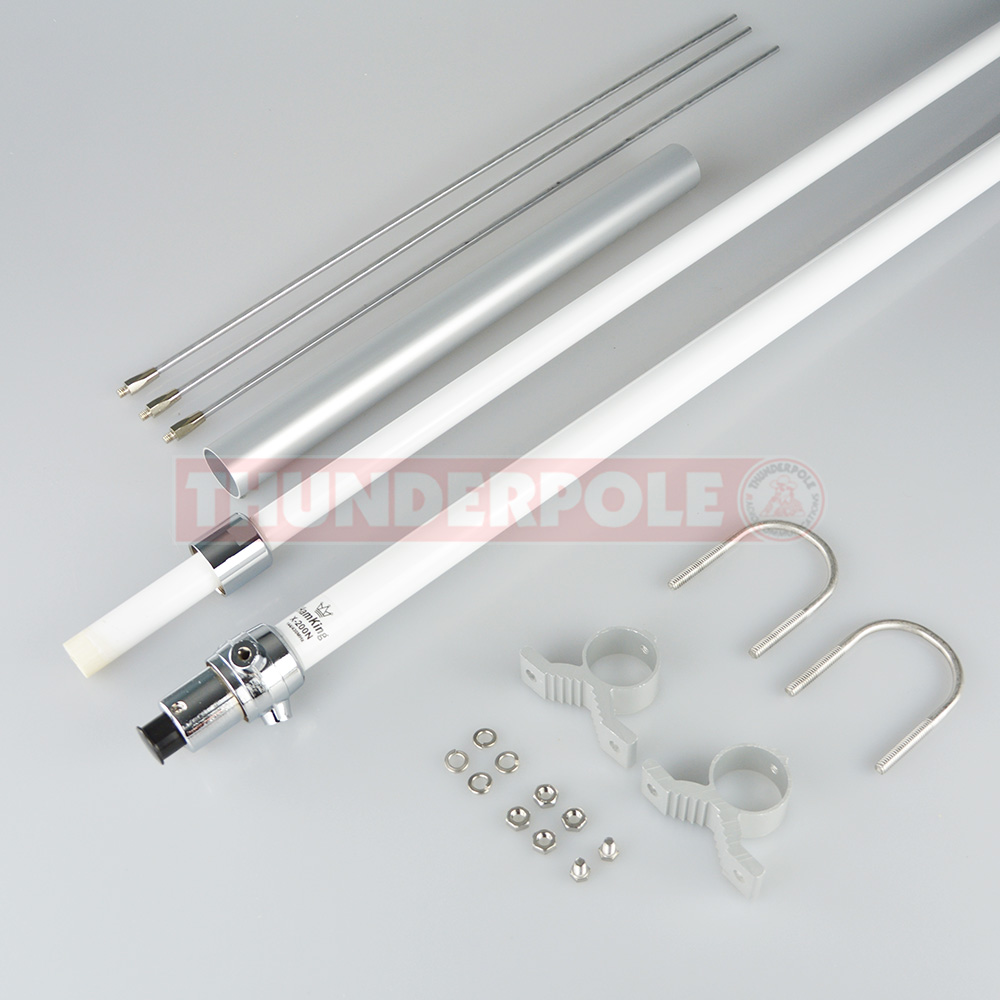

The HamKing X-200N vertical antenna for 144 MHz (6.0 dBi gain) and 430 MHz (8.0 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.
