HamKing V-2000-2N Tri Band Antenna

Main Features

Electrical Data:

• Frequency band: VHF/UHF
• Frequency: 50/144/430 MHz
• Gain: 2.15 (50 MHz) 6.2 dBi (144 MHz), 8.4 dBi (430 MHz)
• VSWR: <1.5
• Power: 150 watts
• Impedance: 50Ω
• Type: ½ wave (50MHz), 2x5/8 wave (144 MHz), 4x5/8 wave (430 MHz)
• Radiation: Omnidirectional

Mechanical Data:

• Weight: 1200 gram
  Length: 250 cm (two parts)

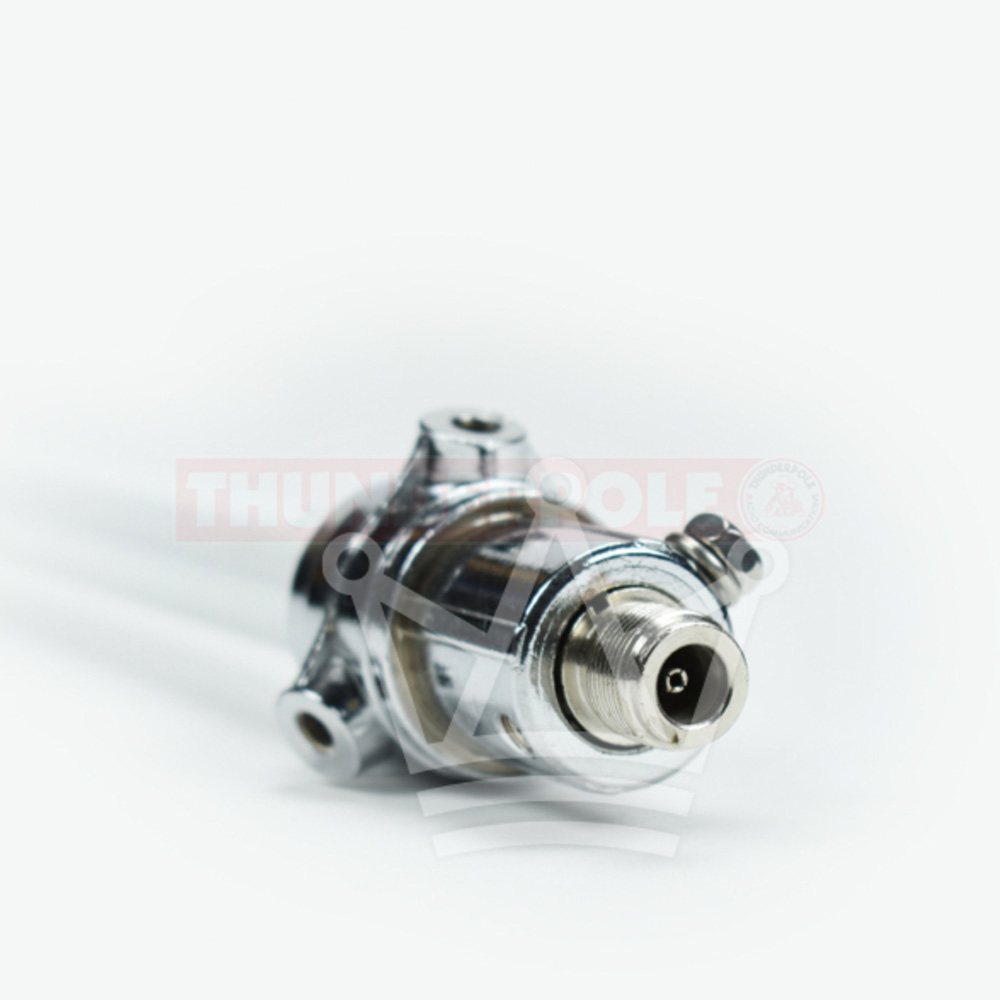

  Connector: N female
  Mast Ø: 30 - 48 mm
  Max wind resistance: 50 m/sec (180 km/h)

HamKing V-2000-2N | 50/144/430 MHz Tri Band Base Antenna

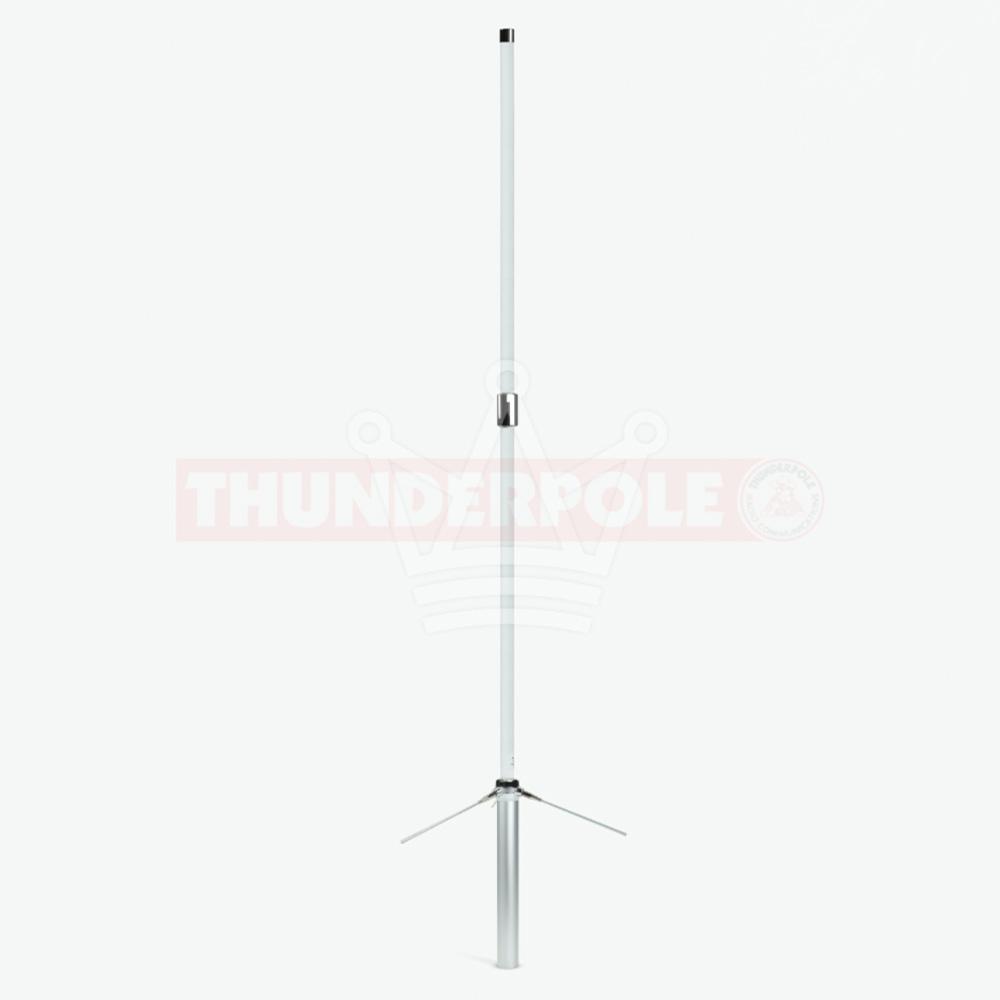

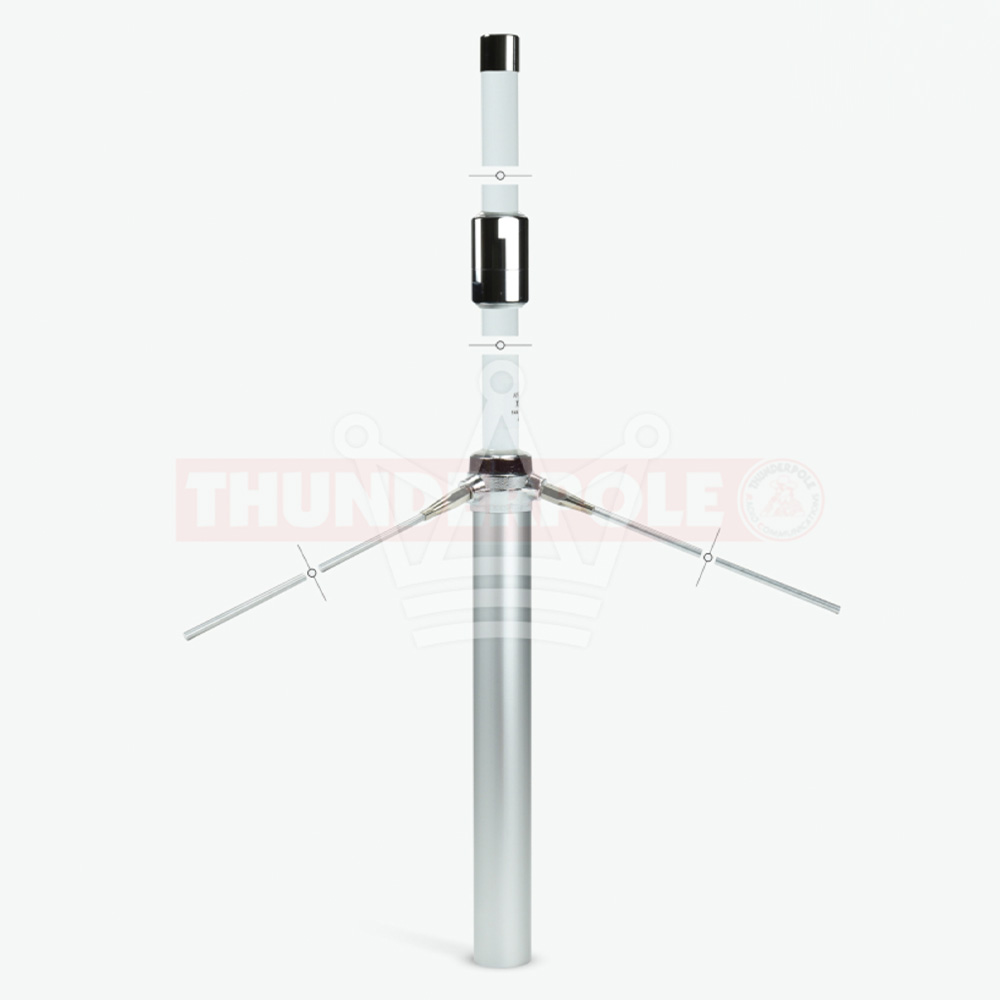

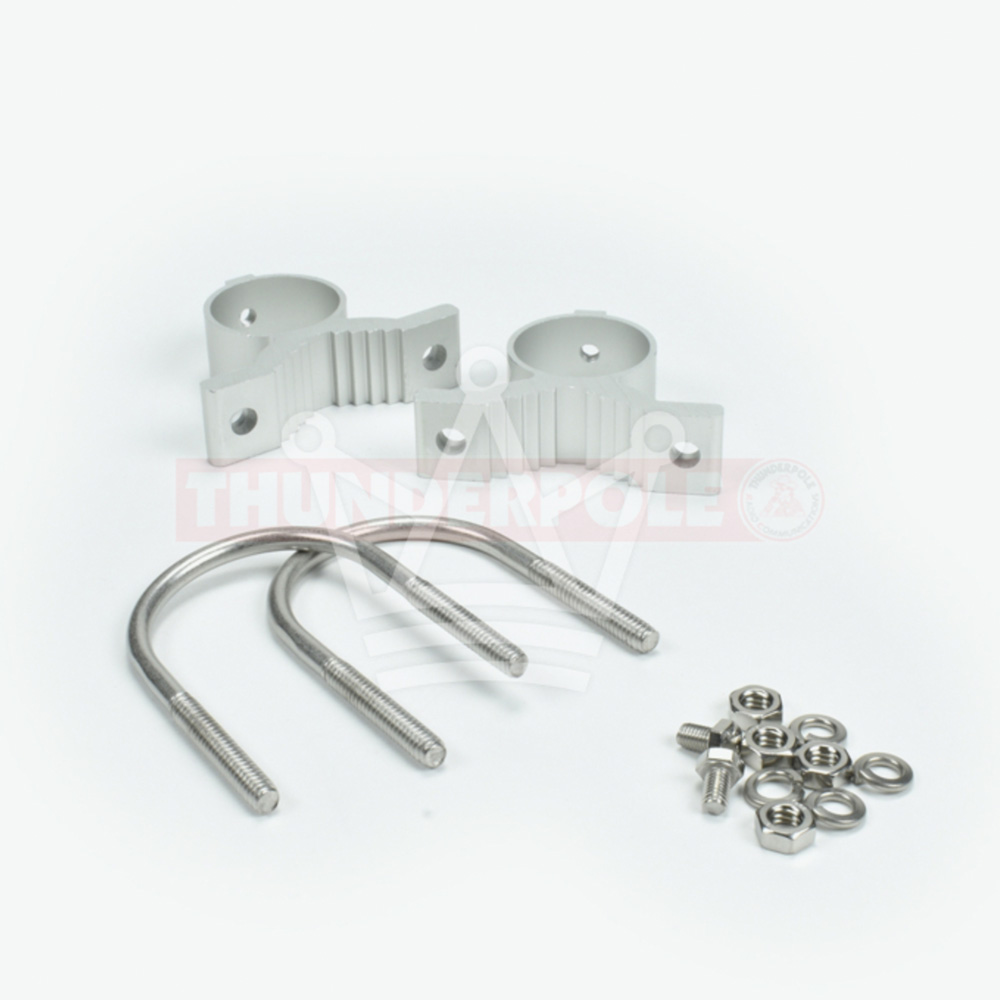

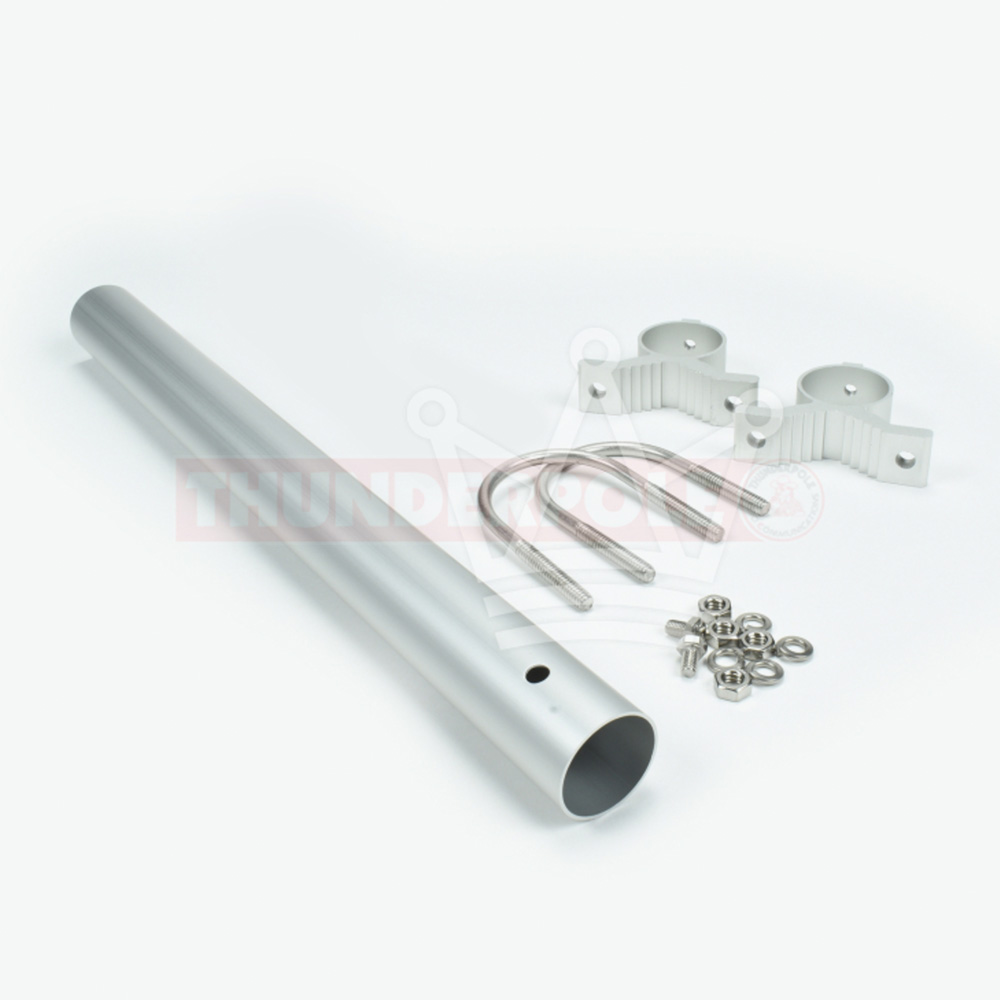

The HamKing V-2000N-2 vertical antenna for 50 MHz (2.15 dBi gain), 144 MHz (6.2 dBi gain) and 430 MHz (8.4 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 150 watts.
