HamKing X-30N Dual Band Antenna

Main Features

Electrical Data:

• Frequency band: VHF/UHF
• Frequency: 144/430 Mhz
• Gain:3 dBi (144MHz) / 5.5 dBi (430MHz)
• VSWR: <1.5 Power: 150 watts
• Impedance: 50 Ohms
• Type: 1/2 wave element (144 MHz), 2x5/8 wave element (430 MHz)
• Radiation: Omnidirectional

Mechanical Data:

• Weight: 700g
• Lenght: 130 cm
• Connector: N Type
• Mast Ø: 30 - 48 mm
• Max wind resistance: 60 m/sec (216 km/h)

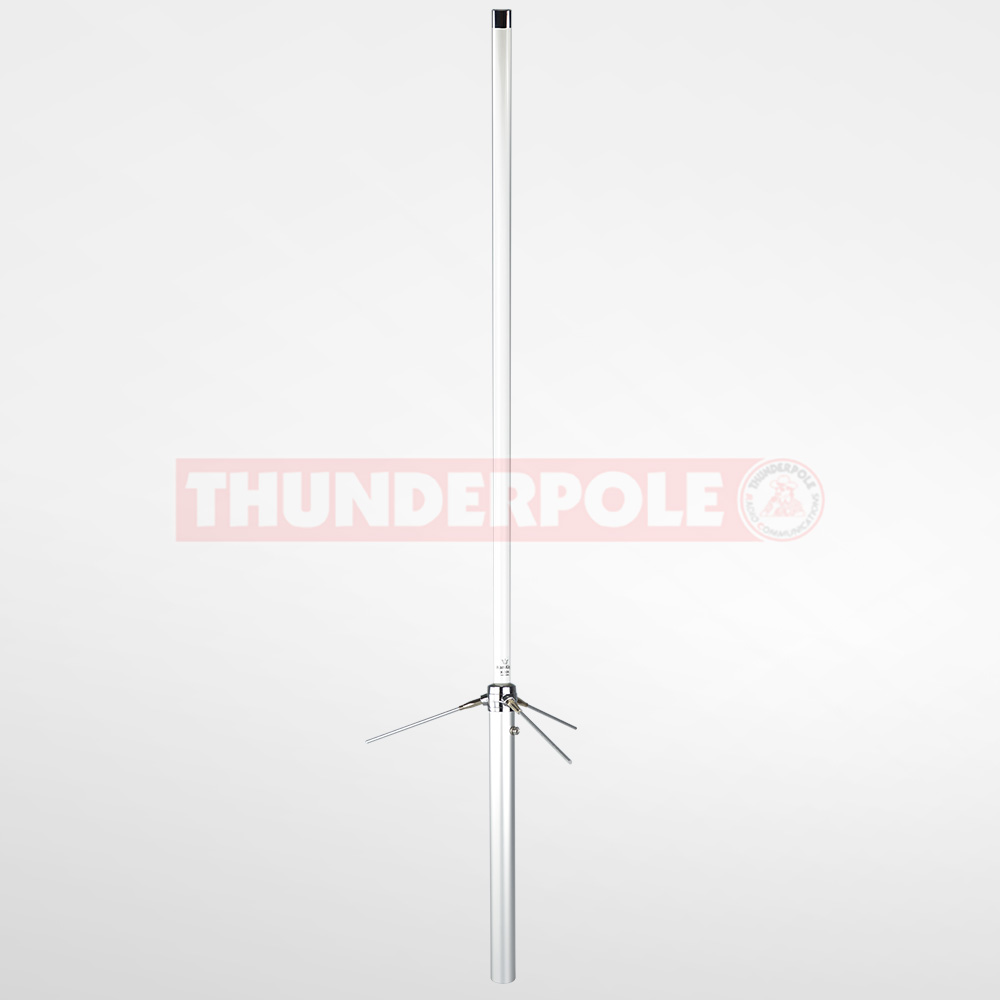

HamKing X-30N | 144/430 MHz Dual Band Base Antenna

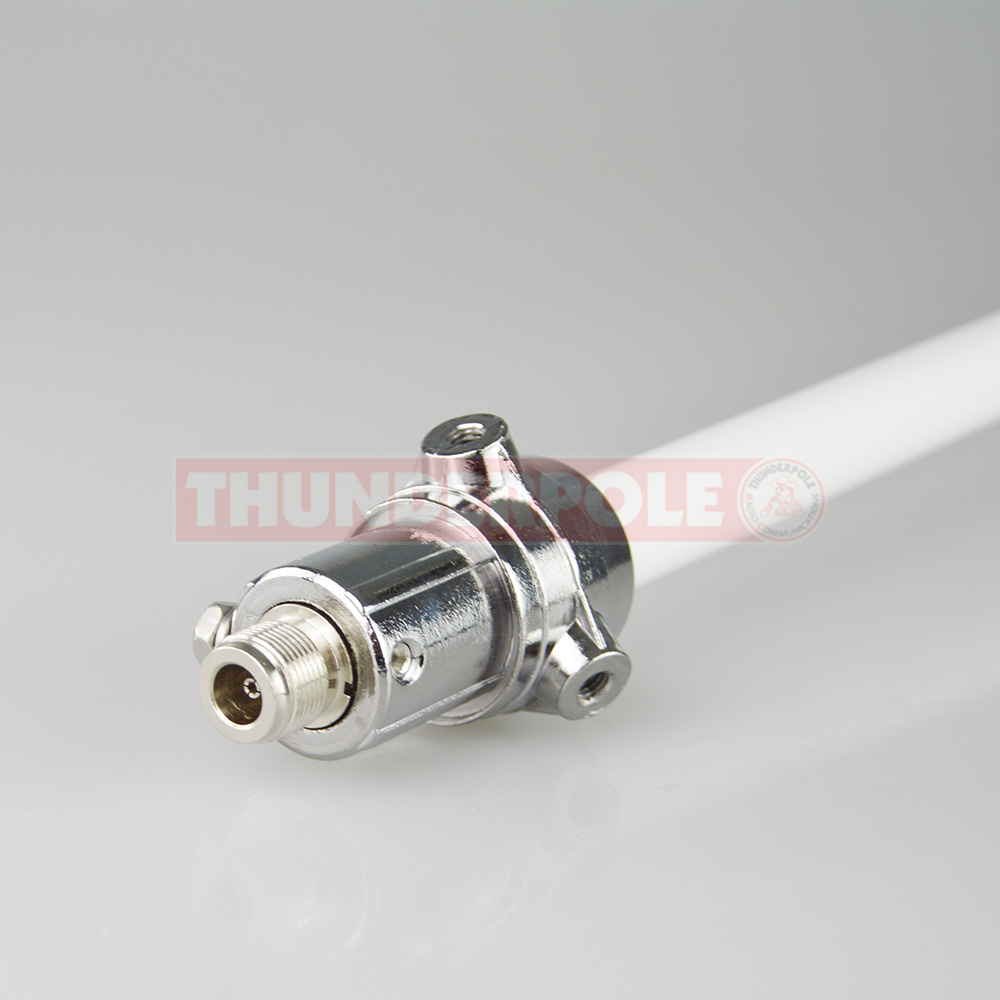

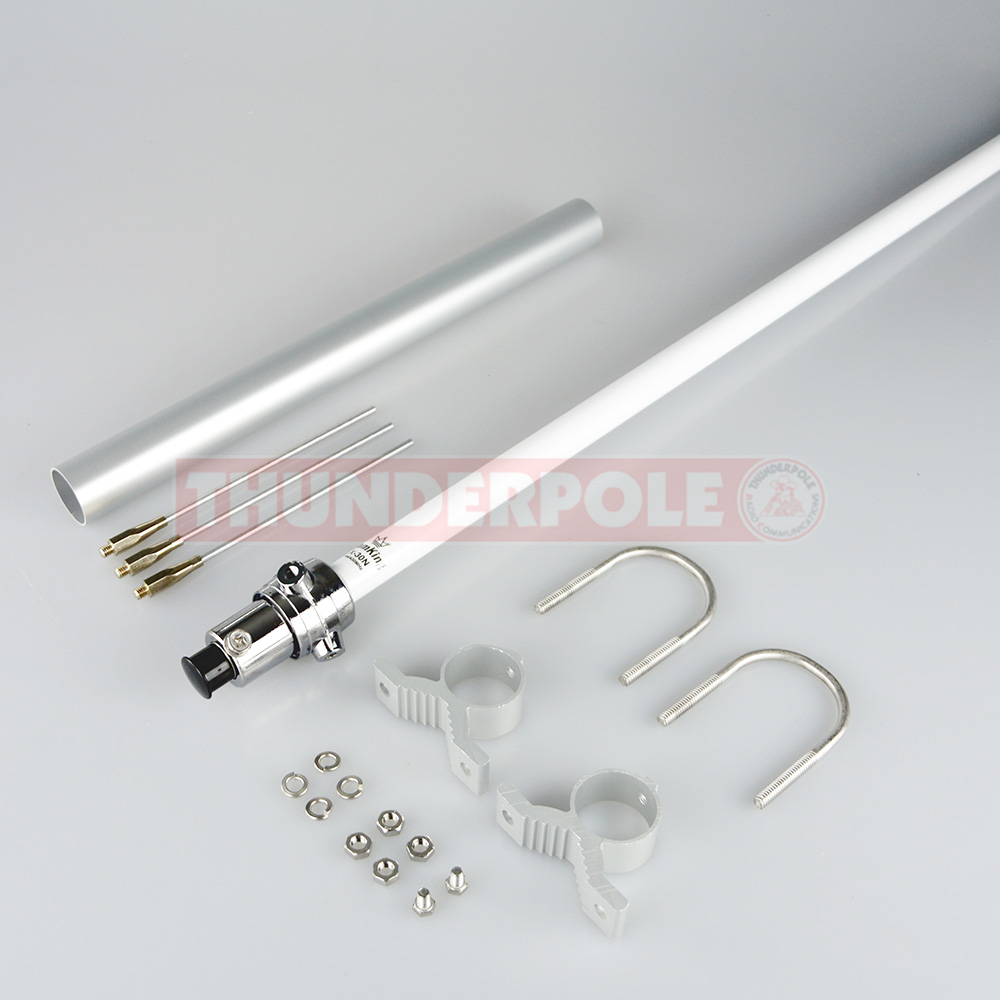

The HamKing X-30N vertical antenna for 144 MHz (3.0 dBi gain) and 430 MHz (5.5 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.
