Kenwood TK3501 | UHF FM Handheld Transceiver
The Kenwood ProTalk® TK-3501 – Kenwood's latest PMR446 UHF FM portable radio – ticks all the boxes. With its compact dimensions and lightweight chassis, this tough little transceiver is easy to carry and operate. And it keeps on going – for as long as 20 hours per charge.
With its light yet strong aluminium die-cast chassis, the Kenwood TK-3501 is built to survive hard knocks and drops. And thanks to its sealed case, it offers reliable performance in severe weather and environments. It satisfies or exceeds the stringent IP54/55 dust and water intrusion standards, as well as the US MIL-STD 810 C, D, E & F environmental standards.

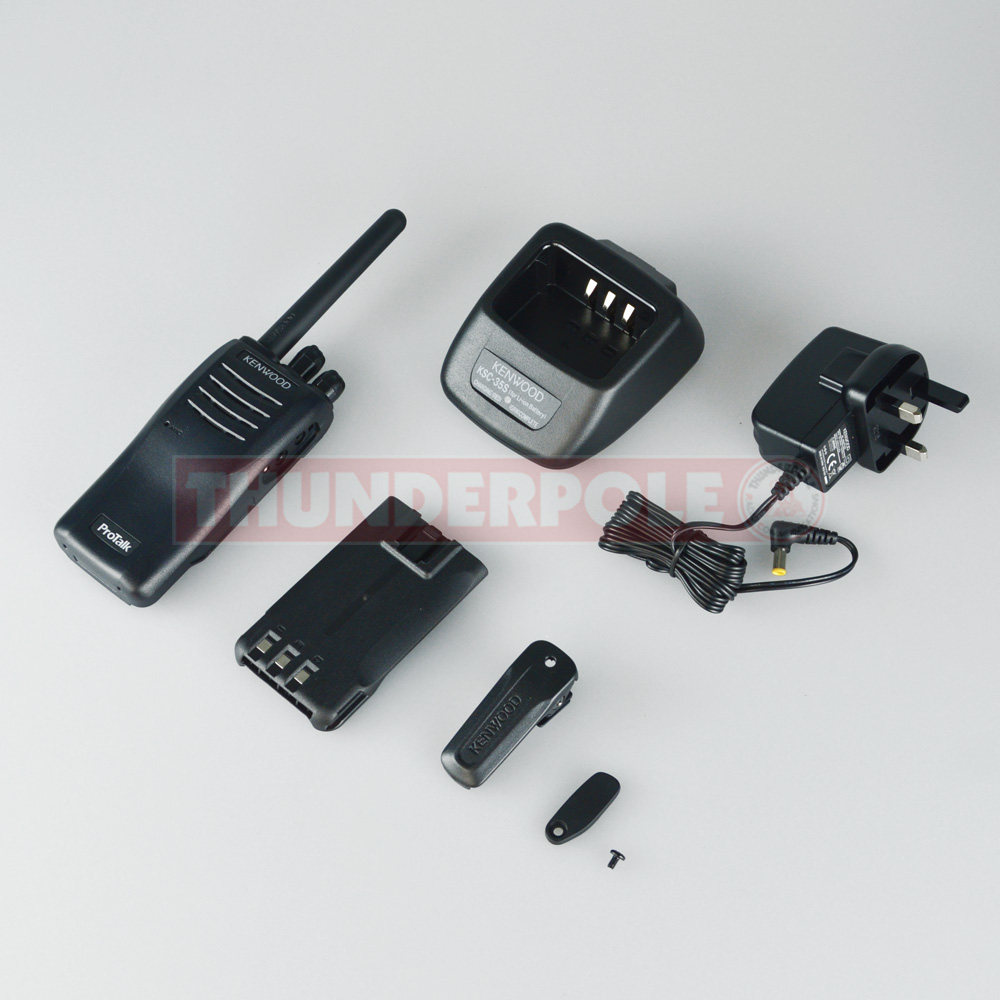

Included with your Kenwood TK3501
- 1x Kenwood TK3501
- 1x 2000 mAH Li-ion Battery Pack
- 1x Single Drop-in Charger
- 1x Belt Clip
- User Manual
Microphone Wiring
Kenwood
2 Pin
Kenwood TK3501 Specifications
| General: | |
| Number of Channels: | 16 |
| Channel Spacing: | 12.5 kHz |
| Antenna Impedance: | 50 Ohm |
| DC Input Voltage: | 7.5 V DC ± 20 |
| Operating Temperature: | -30 °C to + 60 °C |
| PLL Channel Steps: | 5.0 kHz/6.25 kHz |
| Dimensions: | 54 x 122 x 21.10 mm With antenna: 54 x 122 x 33 mm |
| Weight: | 280g. (with battery pack and antenna) |
| Receiver: | |
| Sensitivity (12dB Sinad): | 0.28 μV |
| Sensitivity (20dB Sinad): | -3 dB μV (0.35 μV) |
| Audio output: | 500mW |
| Transmitter: | |
| RF output power: | 0.5 W (PMR446 standard) |
| Modulation: | FM |
| Spurious Emission (EN): | -36 dBm ≤ 1 GHz
-30 dBm > 1 GHz |
| Spurious Response: | (EIA) 65 dB |
