Sirio SPB 1.7-2.5-10 Directional Wi-Fi Antenna

Main Features

• Base station antenna, Directional
• Wide-band, High-gain
• DC-ground protection
• High quality PCB radiator protected by ABS UV stabilized radome
• For DCS,PCS,DECT,UMTS and WLAN systems

Electrical Data

• Type: Planar reflector
• Frequency range: 1700-2500 MHz
• Impedance: 50Ω Unbalanced
• Polarization : Linear Vertical
• Gain : 10 dBi 3 dB
• Beamwidth Vertical : E-plane 53° at 2045 MHz 3 dB
• Beamwidth Horizontal : H-plane 54° at 2045 MHz
• Downtilt : 0°
• Front to back ratio : ≥ 20 dB
• S.W.R. in Bandwidth : ≤ 1.5:1 from 1.7 to 2.17 GHz; ≤ 2.0:1 from 2.17 to 2.5 GHz
• Max Power : 20 Watts (CW) at 50° C
• Feed System / Position : Direct DC-ground / Center
• Cable lenght / Type : 30 cm, other length on request / RG 58 C/U or CO 100

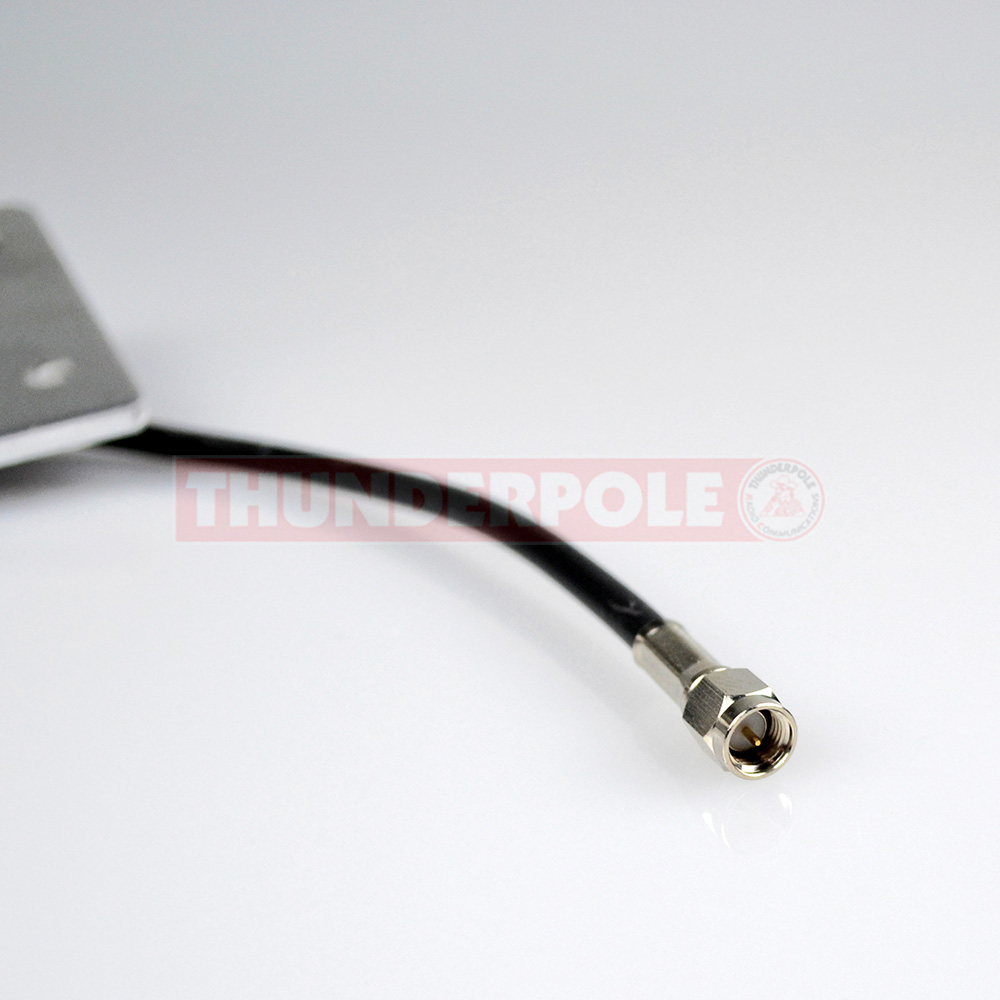

• Connector type : SMA-male, other type on request

Mechanical Data

• Housing Materials : PCB, Aluminium, Brass Radome
• Material : White ABS UV Stabilized
• Wind Load / Resistance : 60 N at 150 Km/h / 180 Km/h
• Wind Surface : 0.03 m2
• Dimensions (approx.) : 170 x 170 x 50 mm without bracket
• Weight (approx.) : 500 gr
• Operating Temperature : -20° C to 80° C

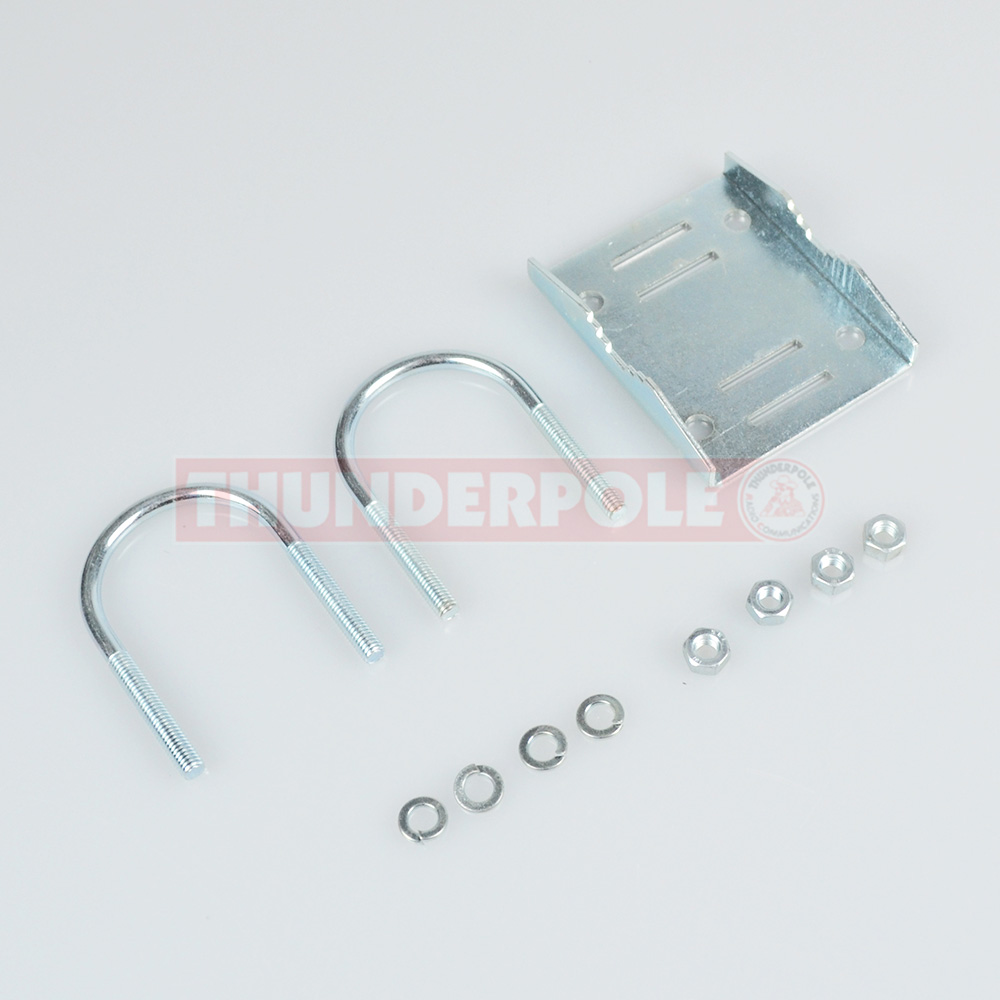

• Mounting Mast : ∅ 35-50 mm

Sirio SPB 1.7-2.5-10 Directional | UHF Base Station Antenna 1.7/2.5 GHz 10 dBi

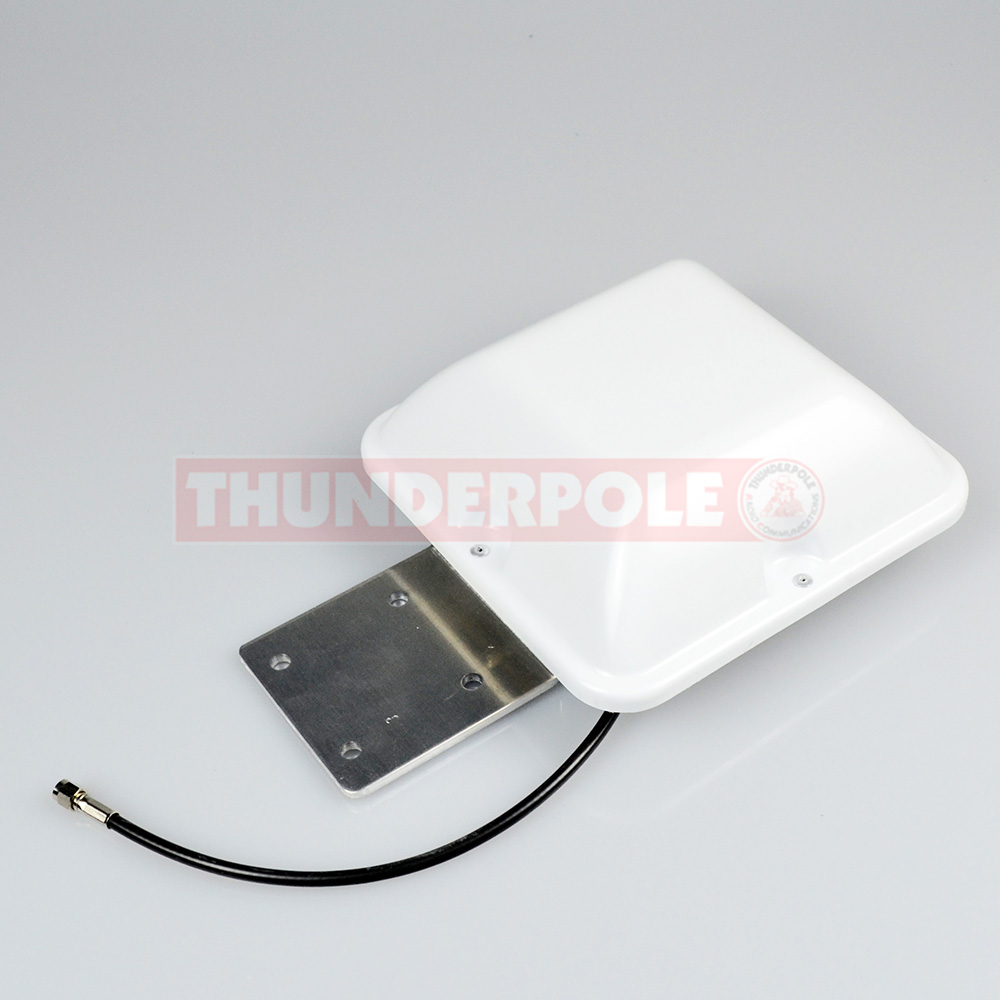

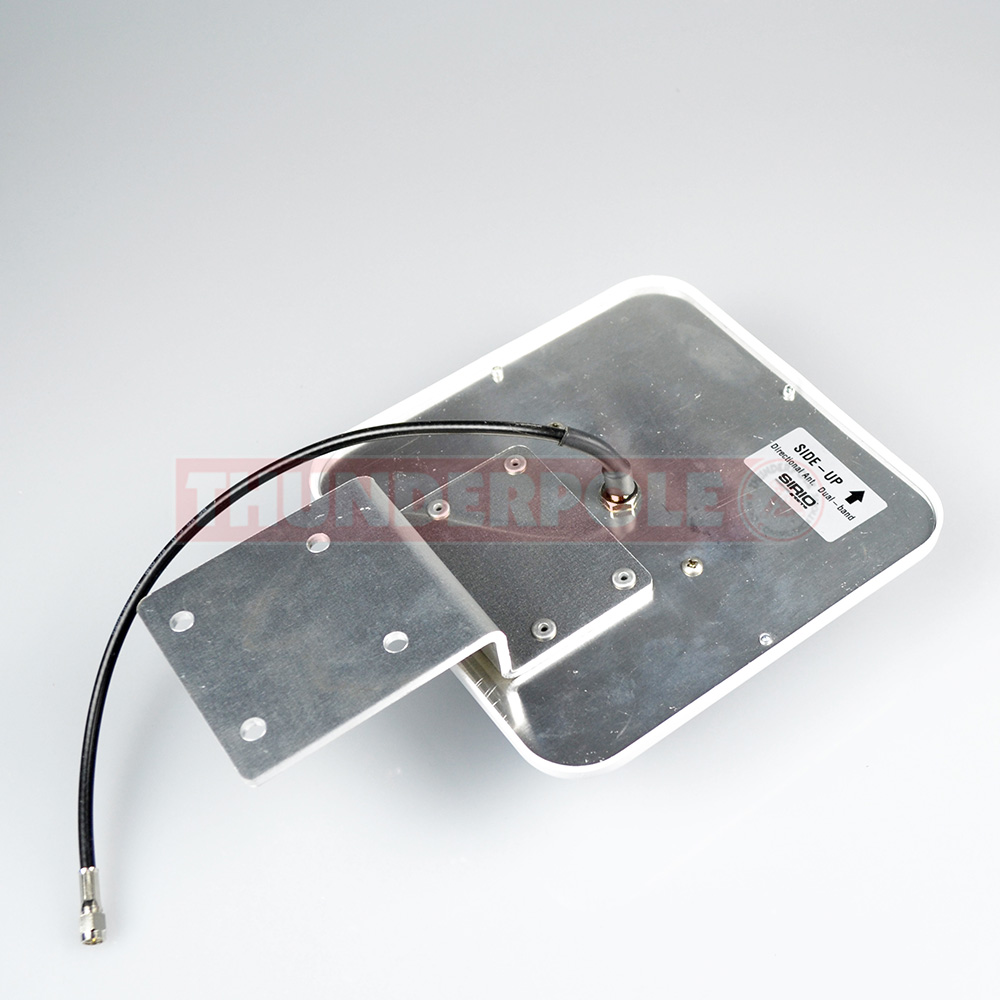

The 'Sirio SPB 1.7 -2.5 10' is a multi band Wi Fi base station antenna working on 1.75-2.5 GHz conceived for DCS 1.8 GHz, PCS 1.9 GHz, DECT, UMTS and WLAN systems. The radiant element is made on a PCB and it is protected by a UV-stabilized radome to get the best performance for long periods of time. It's supplied with an aluminium bracket for an easy installation on the mast.
