RG Mini 8 Super XX Coaxial Cable | Grey

£1.10

~~£1.30~~

Save

£0.20

(3 Reviews)

Cable Length

Per Metre

–

+

Ref

18006M

Type

Antenna Cable

Colour

Grey

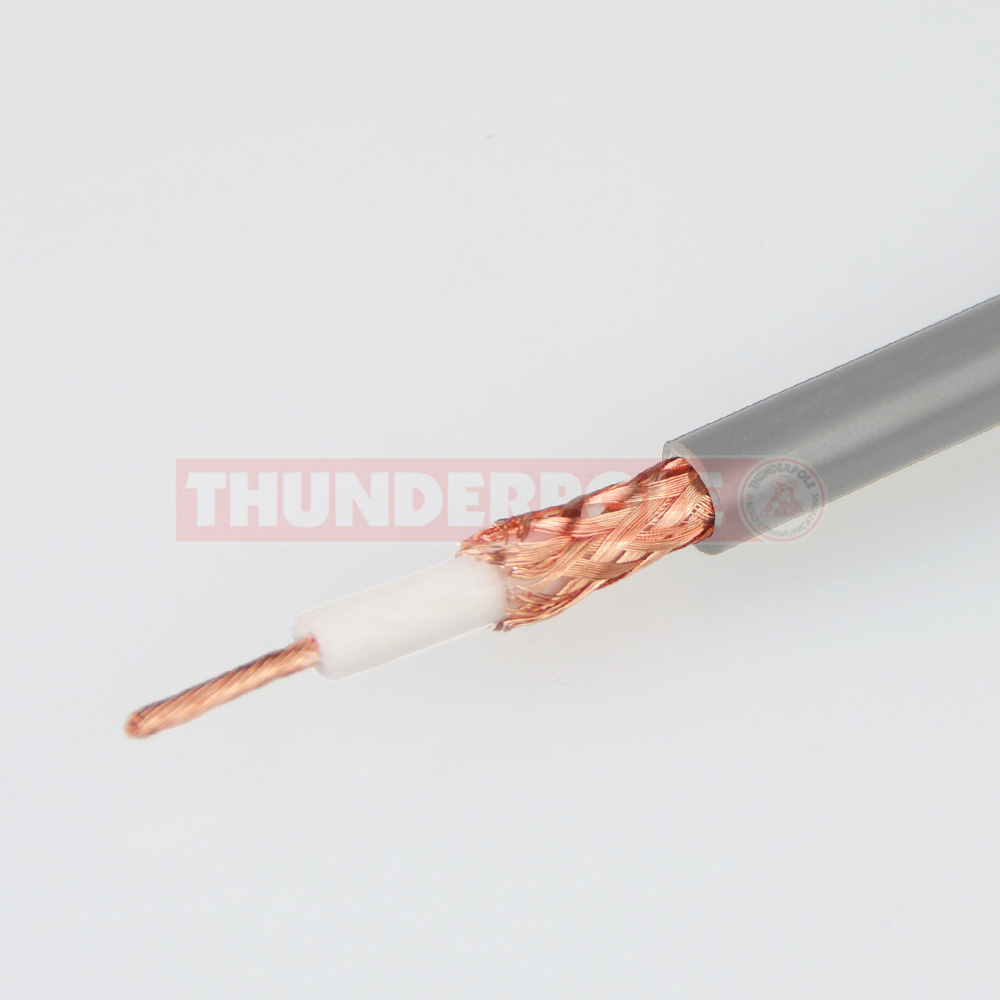

RG Mini 8 Super XX Coax Cable | Grey

High quality, high performance low loss 50 Ohm coaxial cable suitable for most radio applications.

RG Mini 8 Super XX coax cable has the same spec as the larger RG213 cable, but has a smaller diameter to make it a lot easier to work with.

Note: Use 7mm PL259's when attaching to radios and mounts.

Share Your Photos

Share a photo of your Thunderpole product and appear in our showcase. Make sure to tag your image with either @thunderpole_uk or #thunderpole on Instagram.

Ratings & Reviews

Write a Review and share your opinions!

3 Reviews:

The mini 8 super xx coax.

Rating:

22 December 2023 | Arthur

Excellent quality.very easy to work with.

Was this helpful to you? Yes / No

The mini 8 super xx coax.

Rating:

22 December 2023 | Arthur

Excellent quality.very easy to work with.

Was this helpful to you? Yes / No

Got myself connected

Rating:

23 November 2022 | Robert

I have used this coaxial before between my sw receiver and a dresser mdx receiving antenna and found to have little to no loss 12 m I therefore I wouldn't loss the same on transmitting it is well shielded I wouldn't go by it as I use it on all my equipment brillant.

1 of 2 people found this review helpful.

Was this helpful to you? Yes / No

3

Main Features

High quality Low Loss co-axial cable
Plain copper inner conductor
Foam polyethylene dielectric
Plain copper outer conductor
Low smoke and fume polyvinyl-chloride sheath
Impedance 50 ohms
Sheath diameter 6.1mm
Capacitance 80pF/m
Velocity ratio 80%
Screening effectiveness 100-900 Mhz >55
Attenuation :- dB/100m
50Mhz - 7.2
100Mhz - 10.5
400Mhz - 22.2
600Mhz - 27.6
860Mhz - 33.9
1000Mhz - 37.0
2400Mhz - 64.5
