Sirio Boomerang A

Main Features

Electrical Data:

• Type: 1/4 λ ground plane boomerang
• Radiation: Omnidirectional
• Polarization: Linear vertical
• Frequency range: 26.8 ... 27.6 MHz Tunable
• Systems: 10m-HAM
• Gain: 0 dBd, 2.15 dBi
• Bandwidth: ≥ 800KHz @ SWR ≤ 2
• Max Power: 300 Watts (CW) continuous
• 900 Watts (CW) short time
• Connector: UHF-female (SO-239)

Mechanical Data:

• Materials: Aluminium, Copper, Galvanized steel, Fiberglass, Nylon
• Height (approx):  3600 mm / 11.81 ft
• Weight (approx): 750 gr / 1.65 lb
• Mounting type: On-Mast

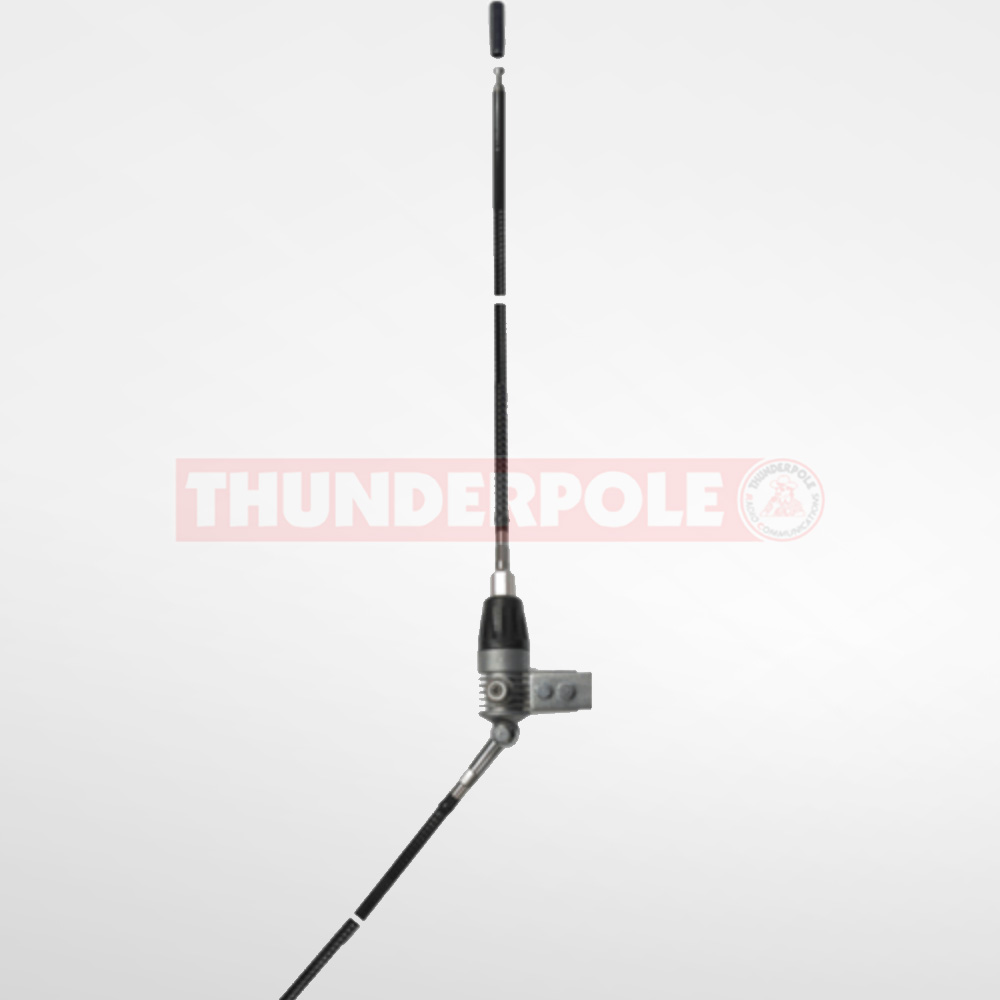

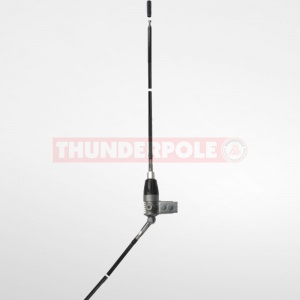

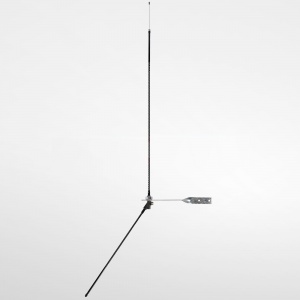

Sirio Boomerang A | CB 26.8- 27.6 MHz AM/FM Homebase Antenna

The Sirio Boomerang A is an omnidirectional CB & 10 Meter Homebase Antenna.

It is factory tuned at the md-band. It can also be tuned by adjusting the tapered fibre glass whip.

It comes complete with mounting bracket & clamps and can be mounted outside or in a loft.

User Manual
