HamKing AZ-510 Antenna
HamKing AZ-510 Antenna
HamKing AZ-510 Antenna
HamKing AZ-510 Antenna

HamKing AZ-510 Antenna

£34.99
+


Ref
32HK-AZ-510
Frequency RX
144 / 430 MHz
Frequency TX
144 / 430 MHz


HamKing AZ-510 | 144/430 MHz Dual Band Mobile Antenna

The HamKing AZ 510 is a pre-tuned mobile antenna, for best performance on 144 MHz and 430 MHz. Sometimes a minor VSWR adjustment can be useful, which can be done by moving the antenna up/down at the base end. Length: 95 cm (app. 38"). Max. power: 50 W.




Share Your Photos

Share a photo of your Thunderpole product and appear in our showcase. Make sure to tag your image with either @thunderpole_uk or #thunderpole on Instagram.




Ratings & Reviews

Be the first to Write a Review for this item!

Main Features

Electrical Data:

  • Frequency band: VHF/UHF/
  • Frequency: 144/430 MHz
  • Gain: 2.15 dBi (144 MHz) / 5.5 dBi (430 MHz)
  • VSWR: <1.5
  • Power: 50 watts
  • Impedance: 50Ω
  • Type: 1/2 wave radialless (144MHz), 2x5/8 wave radialless (430MHz)
  • Radiation: Omnidirectional

Mechanical Data:

  • Weight: 120 gram
  • Length: 95 cm

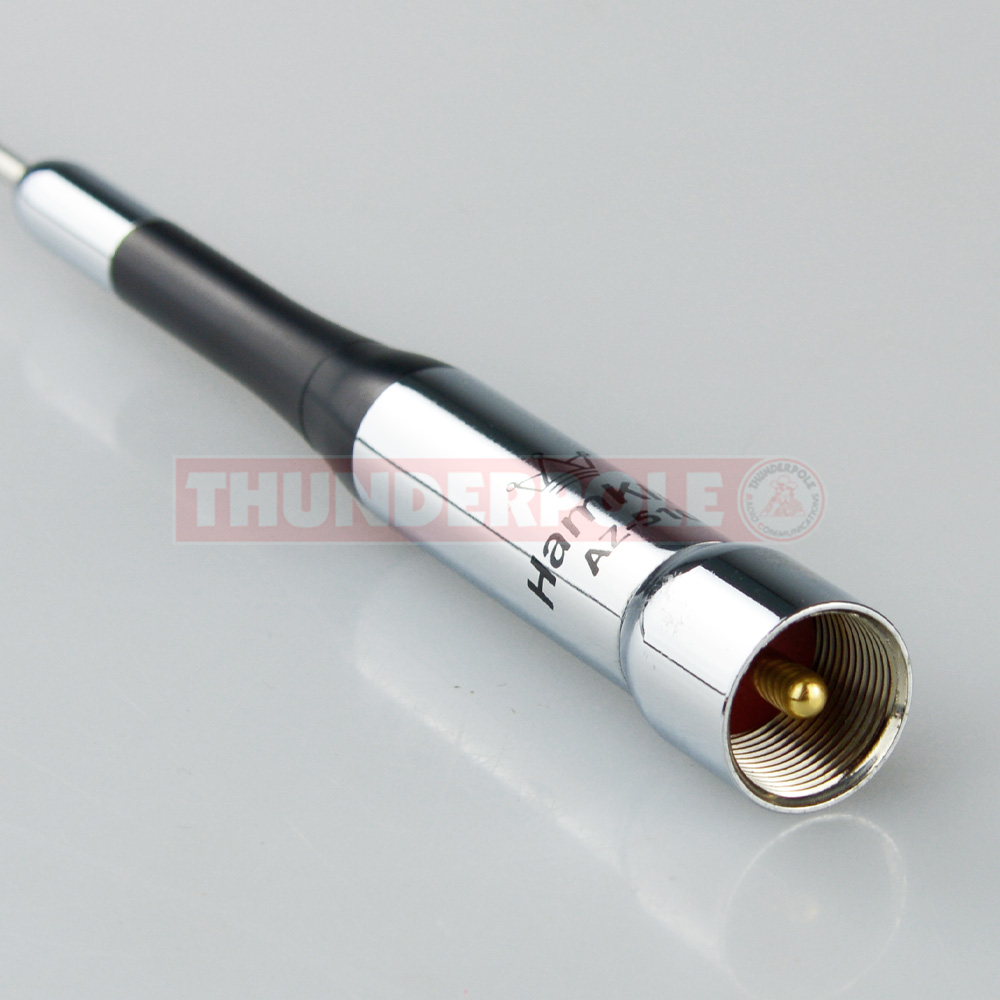

  • Connector: PL259 (to fit SO239 mount)

Main Features

Electrical Data:

  • Frequency band: VHF/UHF/
  • Frequency: 144/430 MHz
  • Gain: 2.15 dBi (144 MHz) / 5.5 dBi (430 MHz)
  • VSWR: <1.5
  • Power: 50 watts
  • Impedance: 50Ω
  • Type: 1/2 wave radialless (144MHz), 2x5/8 wave radialless (430MHz)
  • Radiation: Omnidirectional

Mechanical Data:

  • Weight: 120 gram
  • Length: 95 cm
  • Connector: PL259 (to fit SO239 mount)

HamKing AZ-510 | 144/430 MHz Dual Band Mobile Antenna

The HamKing AZ 510 is a pre-tuned mobile antenna, for best performance on 144 MHz and 430 MHz. Sometimes a minor VSWR adjustment can be useful, which can be done by moving the antenna up/down at the base end. Length: 95 cm (app. 38"). Max. power: 50 W.
